CM 1100A/1500A/1700A/1900A
Servo Precision High Speed Sheet Cutter (Two Reel)
Partial Introduction
Paper feeding unit
Electric appliance unit
Overlapping unit
Single sheet outlet can be adjusted by the overlapping unit.
The number of overlapping sheet can be adjusted by the overapping unit.
Main Technical Parameter
| Model | CM-1100/1500/1700/1900A |
| Model Of Cutting Paper | The up knife cut reciprocally and the down knife is fixed |
| Thickness Of Cutting Paper | 60-550g |
| Max. Scroll Diameter | 1800mm |
| Max. Paper Cutting Width | 1100mm/1500mm/1700mm/1900mm |
| Cutting Length Range | 450-1650mm |
| Cutting Precision | Cutting length≤1000mm: +/-0.5mm; Cutting length>1000mm: +/-0.1% |
| Max. Cutting Speed | 400cuts/min |
| Max. Cutting Meter Speed | 300m/min |
| Max. Paper Piling Height | 1500mm |
| The Request For Air Compressor | 0.8Mpa |
| Power Consumption | 380V/220V×50Hz |
| Gross Weight | 9000kgs/11000kgs/13000kgs/15000kgs |
| Full-load Power | 22/26/30/35KW |
| High-precision single knife cutting machine | 1SET |
| Paper prismatic automatic adjustment system | 1SET |
| Paper transporting equipment | 1SET |
| Automatic paper trimming and collecting machine | 1SET |
| Electrical controlling system | 1SET |
| Driving motor system | 1SET |
| Accessory by machine | 1SET |
| Cone sheftless mill roll stand | 1SET |
| Paper tension controller | 1SET |
| Operation system:LCD panel by operator | 1SET |
| Main drive system:AC servo motor | 1SET |
Our company reserves the right to change technical parameter without futher notice.

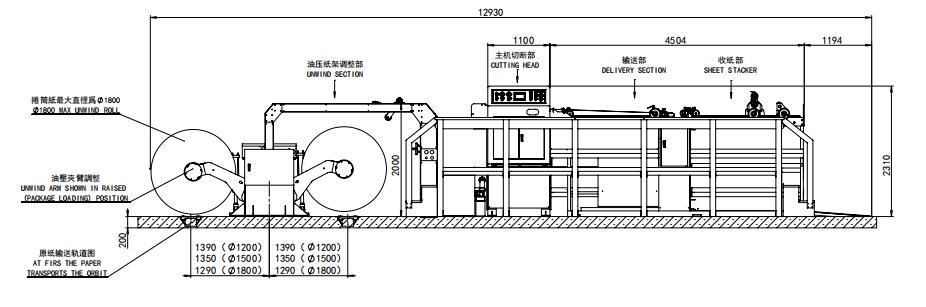

Drawing
