C-1080BF
Semi-automatic Full Sheet Stripping & Blanking Machine




Features Introduced

The Dayuan C-1080BF Semi-automatic Full Sheet Stripping & Blanking Machine enables complete one-pass waste removal without mold changes, delivering high efficiency, easy operation, and greater production capacity.As long as products fall within the machine’s working size range, it can fully strip all die-cut waste in a single pass for various box types, window holes, aircraft holes, and waste edges of front and back stitching.

• One‑pass full stripping and blanking, with high efficiency, easy adjustment and simple operation, greatly improving production capacity.
• The machine performs complete waste removal without mold changes. Its honeycomb plate frame and pins adapt to various box sizes and shapes. Lower pins support the product area while upper pins press the waste area for reliable stripping.

• Reduces labor, tooling and mold costs.

• The machine can fully strip waste from both front and back imposition in a single pass.

• Customizable upper working panel available to meet specific customer requirements.

Full Page Products collection

Partial Introduction

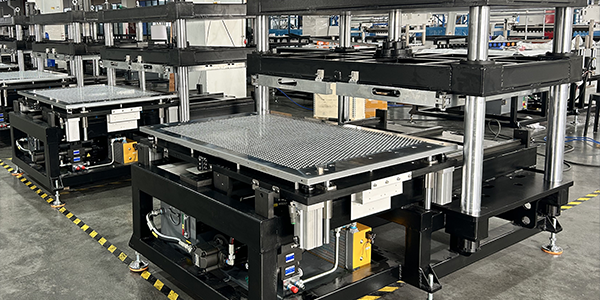

Robust Frame

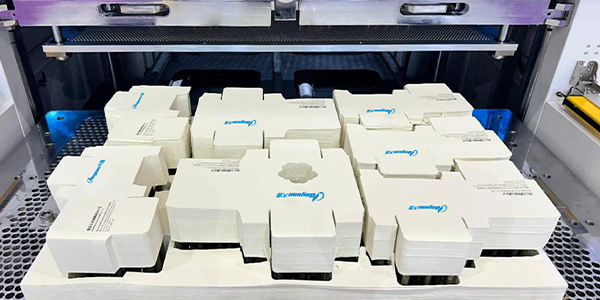

After Stripping &Blanking

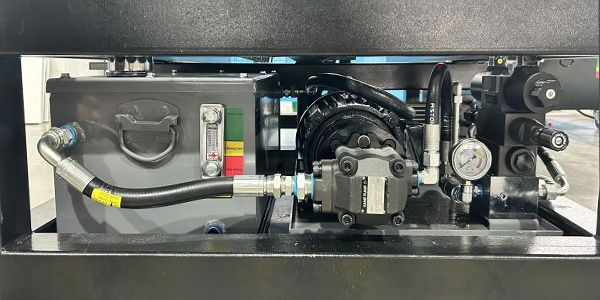

Hydraulic Oil System

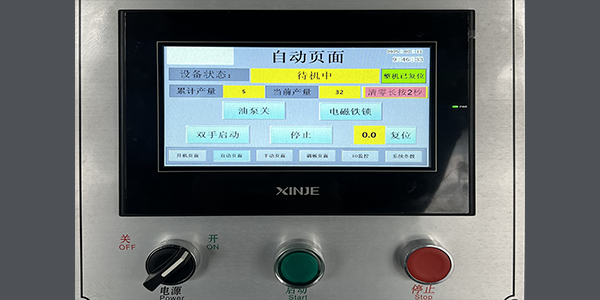

Touch Screen

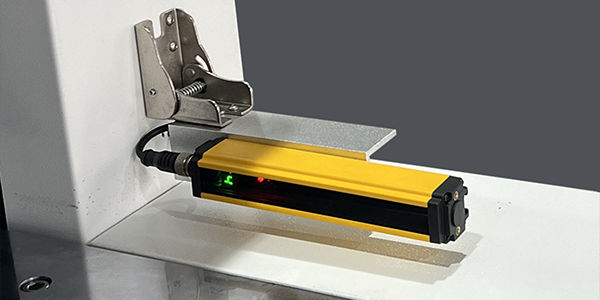

Product Detection Safety Grating

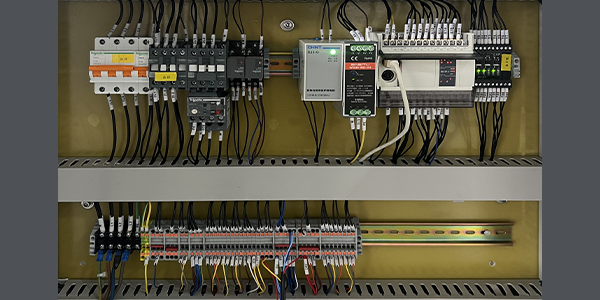

Electrical System

Main Technical Parameter

ModelC-1080BF
Max. Material Stack Size1080×780 mm
Max. Stack Thickness80 mm
Max. Product Size1060×760 mm
Min. Product Size35×35 mm
Max Pressure100 kn
Speed1-5 times/min
Power Supply380V-3 phase-50/60HZ
Total Power4 kw
Average Power2.8 kw
Working Air Pressure0.5-0.6mpa
Air Consumption65L/min
Overall Dimensions2100×1760×1700 mm
Weight2580 kg

Automatic Lifter Technical Parameters:

ModelC-SLJ
Conveyor belt size1550×645 mm
Max Material Stack Height80 mm
Max Pressure100 Bar
Feeder size1550×910×1100 mm
Lifter size1200×1800×1000 mm
Weight550 KGS
Power380V/3 phase/50HZ
Total power3.7 kw
