MHC 1100EC/1300EC/1500EC/1650EC
Automatic Die Cutting Machine with Stripping (Tiptronic)
Features Introduction
MHC Series Automatic Die Cutting Machine is equipped with servo motor control system, thus makes sure thick and thin paper feeding function effectively, paper feeding system can be divided into three types: 1. single piece of paper feeding function (for 4 – 8mm corrugated paper), 2. two pieces of overlapping paper feeding function (for 2 – 4mm corrugated paper), 3. multiple pieces of overlapping paper feeding function (for to 250g – 2mm paper). This machine including both manual paper feeding and automatic feeder paper feeding function. On condition of flat corrugated paper, automatic feeder paper feeding is accepted with raising efficiency and reducing workforce. Manual paper feeding comes in handy on condition of uneven corrugated paper. This machine maintains multi-operational function, and its development is combined with advantages of similar products in domestic and overseas, is special equipment for packing products such as cartons and paper boxes. Gripper bars with high intensity are applicable to all kinds of cardboard, paperboard and corrugated paper. Frontal, back and side registration mechanism ensures great precision of die cutting. Other parts are adopted such as intermittent mechanism with high precision, pneumatic clutch and pneumatic closed up mechanism, programmable controller and man-machine interface. The interface can display various digital information of machine such as working speed, amount of paper processed, total running time, etc. It is easy to eliminate troubles according to the display of trouble shooting. Transducer is adopted to control the main motor in achieving step-less speed variation.
This machine is equipped with sensors and safety device to ensure normal operation of machine and safety of workers.
Partial Introduction

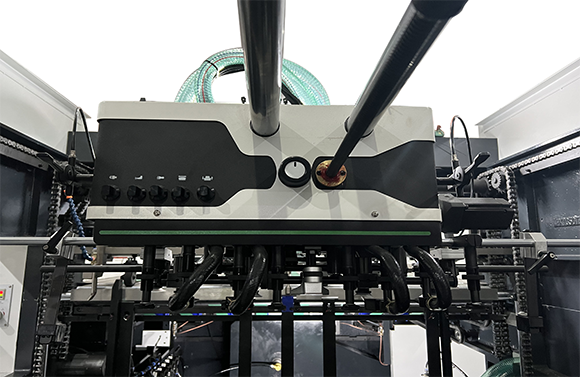

Feeder unit

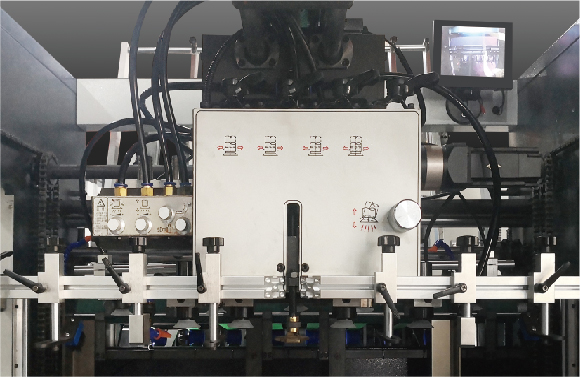

Feeder lifting device(Tiptronic function)

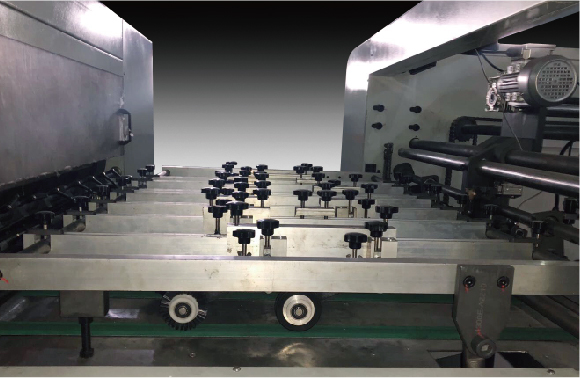

Servo motor conveyor positioning device
Three paper feeding modes:
● Single-sheet paper feeding (suitable for 4-8.5MM corrugated cardboard)
● Double-sheet overlapping paper feeding (suitable for 2-4MM corrugated cardboard)
● Multiple-sheet overlapping paper feeding (suitable for paper with a thickness of ≤2MM)

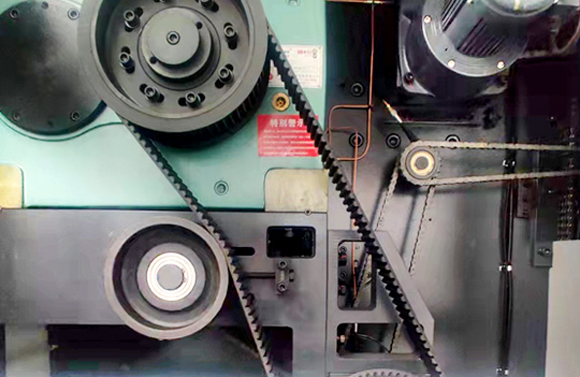

Timing belt drive, Intermittent mechanism
High-precision imported intermittent splitter, capable of maintaining high positioning accuracy even after long-term use.
● MHC1300/1500 series adopt timing belt driven system
● MHC1650 series adopt chain driven system

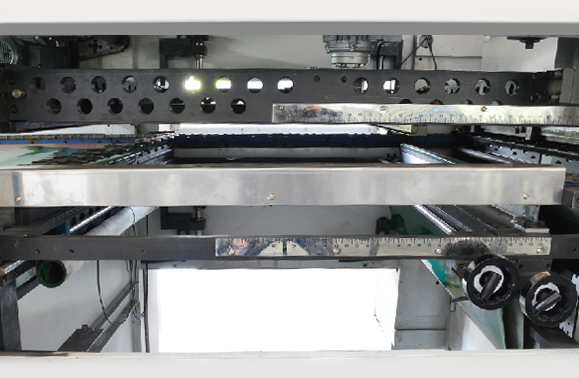

Stripping unit
Adopt center line system,Upper and lower stripping tool mounting frame can be pulled out for job set up and make ready.

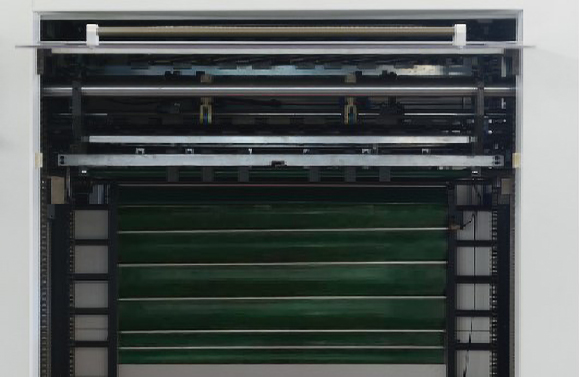

Non-stop roll-up type paper collection device
Main collecting device and Auto non-stop roll-up type auxiliary collecting device switch automatically without any operation, significantly enhancing productivity.

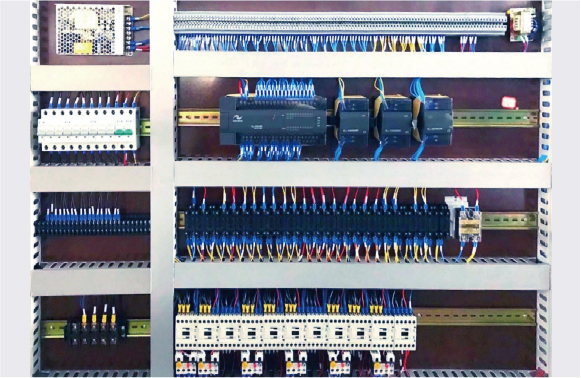

Electric appliance unit
Adopts electrical components of world famous brands(MOELLER\OMRON) for better performance and in time and local after-sale-service and maintenance.

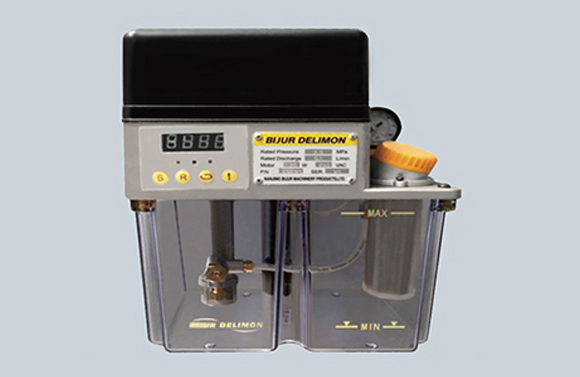

Auto lubrication system
The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil.
Configurations
| Conveying Unit | MHC-1100EC/300EC/1500EC/1650EC |
| 01. Non-stop high-speed paper feeding section | 〇 |
| 02. Feeder lifting device(Tiptronic function) | 〇 |
| 03. Fish-scale powerful paper suction feeder head with 4 suction and 6 delivery. The suction head can be adjust to various suction angles according to the deformation of the paper | 〇 |
| 04. Adjustable suction blower, suction head and air separation valve processed with ultra-hard alloy | 〇 |
| 05. Triple feeder head anti-collision device | 〇 |
| 06. Horizontal paper separation blower | 〇 |
| 07. The main and auxiliary stacking tables alternate without stopping, and the feeder operates without stopping | 〇 |
| 08. Electrical left/right fine-tuning device for the main feed pile | 〇 |
| 09. The pre-stacking device is equipped with rails so that the operator can accurately and conveniently send the stack of paper into the feeder | 〇 |
| 10. The paper alignment adjustment device can manually adjust the distance before the paper reaches the gauge without stopping the machine | 〇 |
| 11. Large inclined paper table, suitable for high-speed conveying of thin paper and curved paper | 〇 |
| 12. Push-pull dual-purpose side gauges, one set for the operation side and one set for the transmission side. Side gauges can be adjusted between push-pull gauges to meet different paper requirements | 〇 |
| 13. Photoelectric detection of side gauge and front gauge | 〇 |
| 14. Servo motor conveying and positioning device | 〇 |
| 15. Three paper feeding modes: 1)Single-sheet paper feeding (suitable for 4-8.5MM corrugated cardboard) 2)Double-sheet overlapping paper feeding (suitable for 2-4MM corrugated cardboard) 3)Multiple-sheet overlapping paper feeding (suitable for paper with a thickness of ≤2MM) | 〇 |
| 16. Electromechanical double sheet detector | 〇 |
| 17. Imported paper feeding belt and stainless steel transfer plate | 〇 |
| 18. Pneumatic lifting device for paper feeding frame | 〇 |
| 19. PLC and electronic cam control the timing of the whole machine | 〇 |
| 20. Blow-suction dual-purpose vacuum pump of German Becker brand | 〇 |
| Die-cutting Unit | |
| 01. The entire machine casting is made of QT-700-2 nodular cast iron | 〇 |
| 02. Imported worm gear, worm gear and 40cr crankshaft | 〇 |
| 03. A complete set of imported anodized aluminum alloy gripper bars and positioning structure, fine steel gripper teeth and supporting gripper plates. The gripper bars adopt an adjustable gripper bar structure | 〇 |
| 04. Imported main drive chain | 〇 |
| 05. Imported intermittent splitter | 〇 |
| 06. Imported synchronous belt and pulley drive | 〇 |
| 07. Imported pneumatic clutch brake device | 〇 |
| 08. Pressure regulating device, which can realize accurate control of pressure through PLC touch screen buttons | 〇 |
| 09. Die-cutting pressure is measured directly and accurately by deformation measuring device and displayed on the human-machine interface | 〇 |
| 10. Die-cutting base plate and die mould rotary device | 〇 |
| 11. The connection between the die cutting plate and the die cutting frame adopts the form of grasping snail and screws, adopt central positioning system, which is fast and accurate | 〇 |
| 12. The die-cutting plate frame and the die-cutting steel backing plate are locked by the Japanese SMC gas volume regulator to avoid the situation that the locking and installation of the upper frame is not in place, and effectively avoid the loss caused by the operation of human factors | 〇 |
| 13. Japan SMC air pressure detection device, low air pressure alarm | 〇 |
| 14. Equipped with an air storage tank to ensure the stability of the air pressure of the whole machine | 〇 |
| 15. The whole machine adopts a centralized automatic oil supply system to ensure that the transmission parts are not short of oil | 〇 |
| Stripping Unit | |
| 01. Upper waste transmission mechanism | 〇 |
| 02. Users can choose whether to use the stripping function by lifting upper stripping frame | 〇 |
| 03. Intermediate negative stripping frame | 〇 |
| 04. Lower stripping transmission mechanism | 〇 |
| 05. The installation of the middle stripping board adopts the center line quick positioning installation method, enabling the operators to install the stripping board quickly and improving the plate changing efficiency | 〇 |
| Delivery Unit | |
| 01. Roll-up type auxiliary paper collection rack, which can realize non-stop paper collection | 〇 |
| 02. Adjustable mechanical paper delivery brush press mechanism to help gripper bar discharge and stack paper | 〇 |
| 03. Paper collecting device | 〇 |
| 04. Photoelectric detection of upper and lower limit switches to prevent excessive paper stacking and paper roll-up at the delivery table | 〇 |
| 05. Equipped with two-way auxiliary blower for paper collecting,with manual sampling mechanism which is easy to operate | 〇 |
| 06. Spring loaded adjustable chain tensioner for maintaining constant tension thus reducing stress on chains and producing smooth gripper bar movement | 〇 |
| Electrical Parts | |
| 01. Self-developed PLC control system(Invention Patent) | 〇 |
| 02. The die-cutting unit adopts 10.4-inch touch display screens produced by Siemens of Germany | 〇 |
| 03. All the machines adopt relays, AC contactors, air switches and buttons made by Moeller from Germany to ensure the stability and reliability of electrical parts | 〇 |
| 04. The whole machine adopts Japanese Omron photoelectric switch, optical fiber, encoder and sensor, to ensure the accuracy and stability of electrical detection of each part of the action | 〇 |
Note: This allocation sheet is for reference only, the formal allocation sheet is subject to the contract. Standard configuration: 〇; Optional: △
Main Technical Parameter
| Model | MHC-1100EC | MHC-1300EC | MHC-1500EC | MHC-1650EC |
| Max. Sheet Size | 1100×790mm | 1290×940mm | 1500×1100mm | 1650×1200mm |
| Min. Sheet Size | 400×350mm | 470×450mm | 470×450mm | 550×500mm |
| Max. Cutting Size | 1070×770mm | 1280×920mm | 1480×1080mm | 1620×1180mm |
| Min. Gripper Margin | 9-17mm | 9-17mm | 9-17mm | 9-17mm |
| Min. Width of Cuts | 10-18mm | 10-18mm | 10-18mm | 10-18mm |
| Cutting Rule Height | 23.8mm | 23.8mm | 23.8mm | 23.8mm |
| Inner Chase Size | 1120×786mm | 1310×948mm | 1510×1118mm | 1682×1219mm |
| Stock Range | ≥200g white board, ≤7mm corrugated paper, E、B、C、A and AB corrugated paper | ≥200g white board, ≤8.5mm corrugated paper, E、B、C、A and AB corrugated paper | ≥250g white board, ≤8.5mm corrugated paper, E、B、C、A and AB corrugated paper | ≥350g white board, ≤8.5mm corrugated paper, E、B、C、A and AB corrugated paper |
| Die Cutting Accuracy | ≤±0.1mm | ≤±0.15mm | ≤±0.15mm | ≤±0.2mm |
| Max. Die Cutting Force | 300T | 400T | 400T | 400T |
| Max. Working Speed | 7500s/h | 5500s/h | 5500s/h | 4500s/h |
| Max. Feeder Pile Height | 1600mm (With pallet) | 1600mm (With pallet) | 1600mm (With pallet) | 1600mm (With pallet) |
| Max. Delivery Pile Height | 1400mm (With pallet) | 1400mm (With pallet) | 1400mm (With pallet) | 1400mm (With pallet) |
| Main Motor Power | 11KW | 11KW | 15KW | 18.5KW |
| Full Load Wattage | 19KW | 19KW | 24KW | 28KW |
| Air Requirement | Pressure: 0.6-0.7Mpa, Flow: ≥0.37m3/min | Pressure: 0.6-0.7Mpa, Flow: ≥0.37m3/min | Pressure: 0.6-0.7Mpa, Flow: ≥0.37m3/min | Pressure: 0.6-0.7Mpa, Flow: ≥0.75m3/min |
| Net Weight of Machine | 17T | 19T | 21T | 23T |
| Machine Dimensions | 7470×4256×2350mm (L: paper prepared track included, W: platform included) | 9551×4506×2467mm (L: paper prepared track included, W: platform included) | 9956×4706×2452mm (L: paper prepared track included, W: platform included) | 10690×5117×2582mm (L: paper prepared track included, W: platform included) |

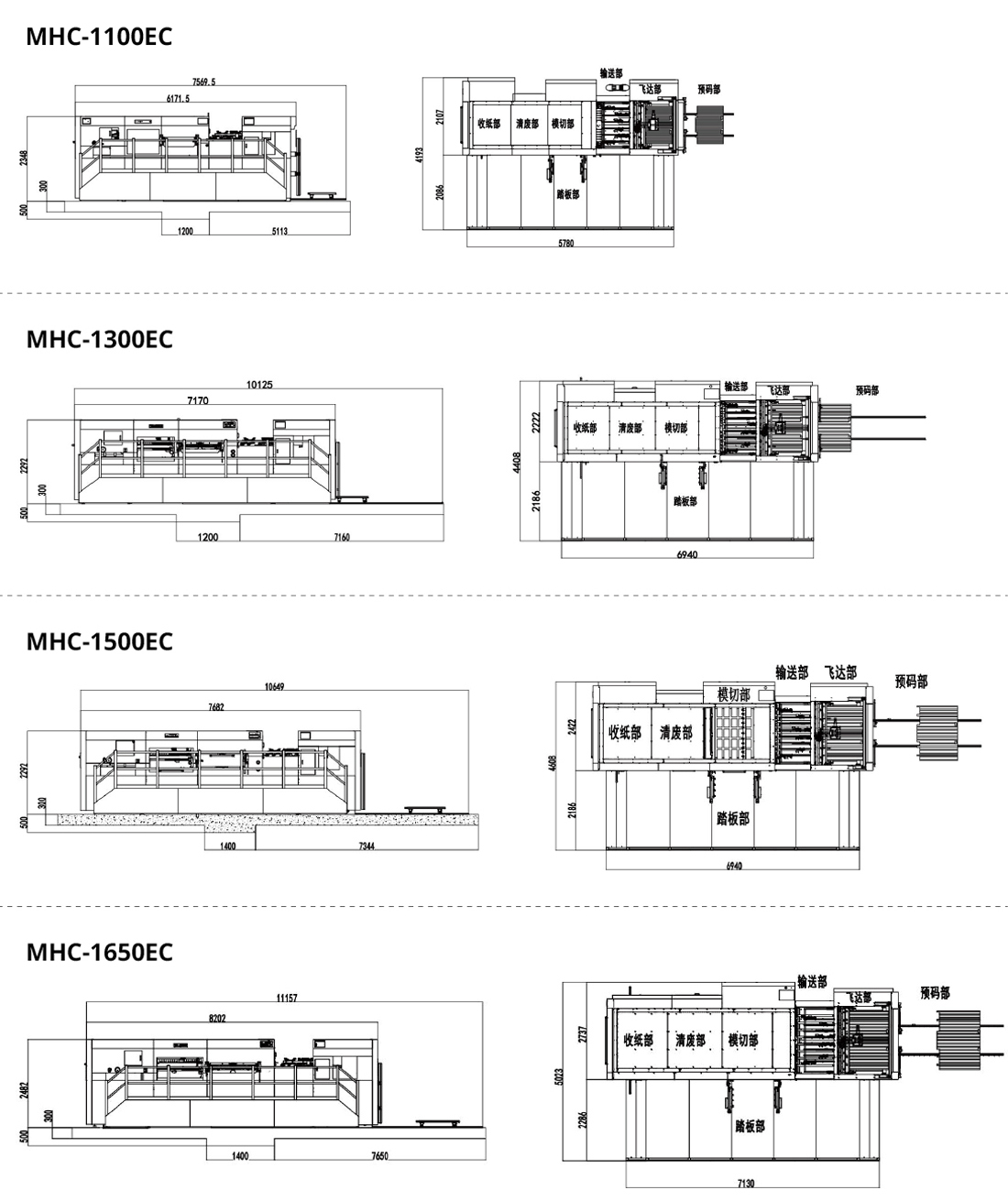

Drawing
