CM 1100A/1500A/1700A/1900A
Servo Precision High Speed Sheet Cutter (Four Reels)
Partial Introduction
Paper rack stand
Automatic anti-curve equipment
Automatic stacker
Main Technical Parameter
| Model | CM-1100/1500/1700/1900A |
| Model Of Cutting Paper | The up knife cut reciprocally and the down knife is fixed |
| Thickness Of Cutting Paper | 60-550g |
| Max. Scroll Diameter | 1800mm |
| Max. Paper Cutting Width | 1100mm/1500mm/1700mm/1900mm |
| Cutting Length Range | 450-1650mm |
| Cutting Precision | Cutting length≤1000mm: +/-0.5mm; Cutting length>1000mm: +/-0.1% |
| Max. Cutting Speed | 400cuts/min |
| Max. Cutting Meter Speed | 300m/min |
| Max. Paper Piling Height | 1500mm |
| The Request For Air Compressor | 0.8Mpa |
| Power Consumption | 380V/220V×50Hz |
| Gross Weight | 9000kgs/11000kgs/13000kgs/15000kgs |
| Full-load Power | 22/26/30/35KW |
| High-precision single knife cutting machine | 1SET |
| Paper prismatic automatic adjustment system | 1SET |
| Paper transporting equipment | 1SET |
| Automatic paper trimming and collecting machine | 1SET |
| Electrical controlling system | 1SET |
| Driving motor system | 1SET |
| Accessory by machine | 1SET |
| Cone sheftless mill roll stand | 1SET |
| Paper tension controller | 1SET |
| Operation system:LCD panel by operator | 1SET |
| Main drive system:AC servo motor | 1SET |
Our company reserves the right to change technical parameter without futher notice.

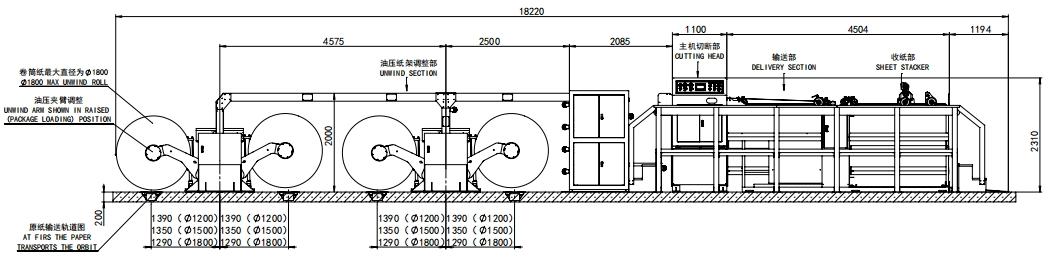

Drawing
