SMC 1900S
Digital Printing Servo Precision Double Helix Sheet Cutter Machine
Features Introduced
Digital ink-jet printing is a printing type of non-contact, non pressure, non plate printing. All digital information can be printed by inputting the digital ink-jet printer through the interface. The traditional ink-jet printing is printing first, then ink-jet printing, which is low efficiency and large loss in paper. At present,the Digital Ink-jet Double-helix High Speed Sheet Cutter Machine developed by our company is to print QR code, bar code and digital pattern on the jumbo roll first through digital ink-jet,then cut the jumbo roll into single sheets, realizing intelligent and efficient detection, enabling digital ink-jet printing and slitting to be completed at one time, greatly reducing paper loss.
Partial Introduction

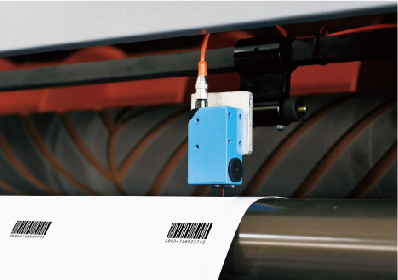

Photoelectric tracking system

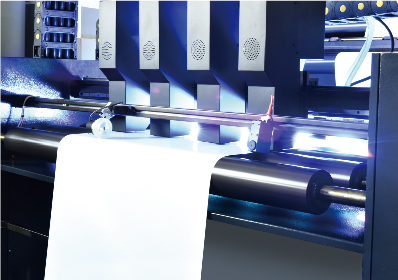

Digital printing unit
Main Technical Parameter
| Model | SMC-1900S |
| Model of cutting paper | Double rotary sheeter |
| Thickness of cutting paper | 100-1000gsm |
| Cutting length range | 450-1650mm |
| Cutting precision | Cutting length≤1000mm: ±0.1mm Cutting length＞1000mm: ±0.1% |
| Max. cutting meter speed | 300 m/min |
| Max. cutting speed | 385 cuts/min |
| Max. digit printing speed | 150 m/min |
| Max. scroll diameter | 1800mm |
| Max. paper cutting width | 1900S(75”)mm |
| Max. paper piling height | 1600mm |
| The request for air compressor | 0.8Mpa |
| Power consumption | 380V/220VⅩ50Hz |
| Gross weight | 28000kgs |
| Full-load power | 100kw |
| Cutting Length(mm) | Speed(m/min) | Speed(cuts/min) | |
| 450 | 100 | 210 | |
| 500 | 110 | 220 | |
| 600 | 155 | 260 | |
| 700 | 230 | 320 | |
| 750 | 290 | 385 | |
| 800 | 300 | 380 | |
| 900 | 300 | 345 | |
| 1000 | 300 | 300 | |
| 1100 | 290 | 265 | |
| 1200 | 280 | 235 | |
| 1300 | 260 | 210 | |
| 1400 | 260 | 190 | |
| 1500 | 260 | 175 | |
| 1600 | 250 | 160 | |
| 1650 | 250 | 155 |

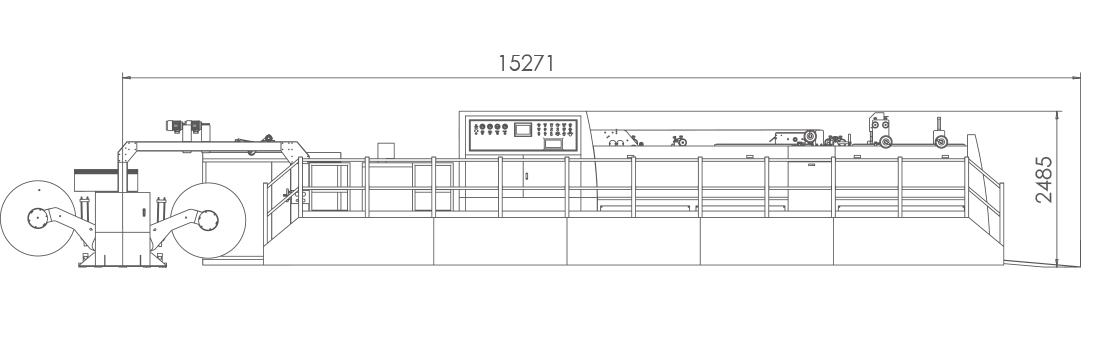

Drawing
